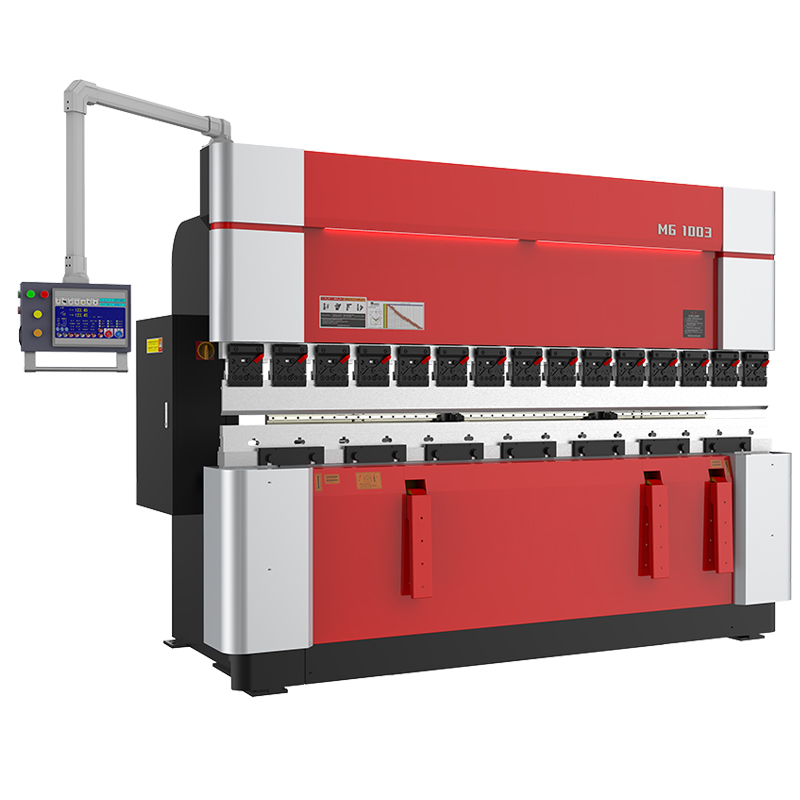

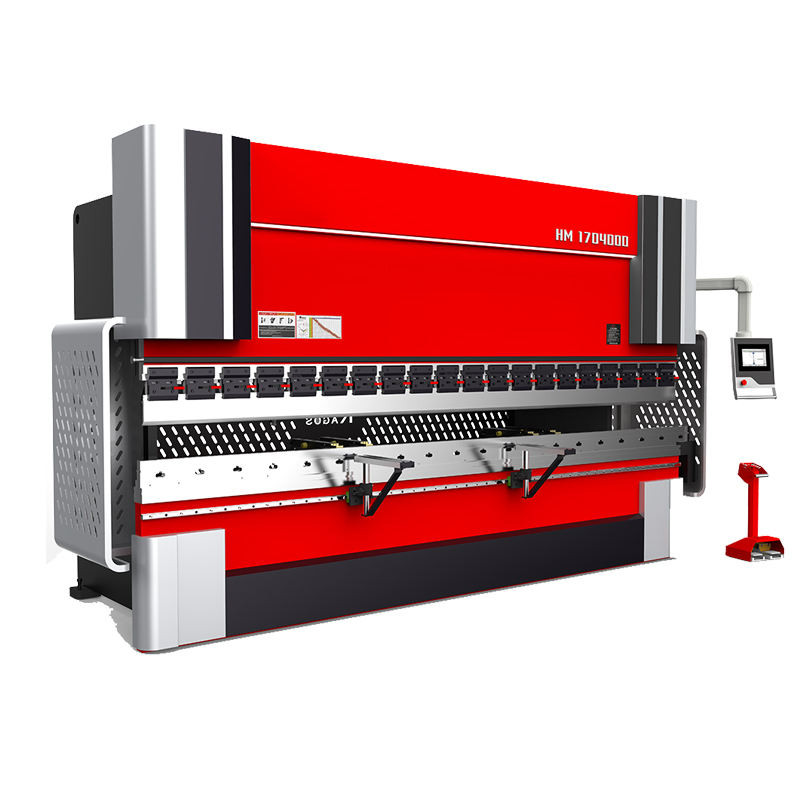

Ikhtisar Produk
Spesifikasi Produk
| TIDAK. | rincian | Original Manufacturer | Nama merk |
| 1 | NC system | Holland | DELEM DA-53 series（Matching） |
| Switzerland | CYBELEC CT8（Standard） | ||
| 2 | Sealed linear encoder | Turkey | OPKON |
| 3 | Sistem hidrolik | German | REXROTH/ ARGOS-HYTOS |
| 4 | Pompa minyak | America/Japan | SUNNY/ NACHI |
| 5 | Sekrup bola | Taiwan | HIWIN/ PMI |
| 6 | Straight guide rail | Taiwan | HIWIN/ PMI |
| 7 | Seal | Jepang | Japan NOK |
| 8 | Air switch | France | Schneider |
| 9 | Miniature relay | France | Schneider |
| 10 | Ac contactor | France | Schneider |
| 11 | Button | France | Schneider |
| 12 | komponen listrik | Jepang | Omron |
| 13 | Socket joint | USA | EATON |
| Technical Parameters & Specification with 130 Ton | |||
| Workbench length | 3200 | mm | |
| Jarak antar kolom | 2700 | mm | |
| Stroke penggeser | 200/250 | mm | |
| Tinggi terbuka | 450/500 | mm | |
| Kedalaman tenggorokan | 400 | mm | |
| Axis number of NC | Y1、Y2、X、R、V | axes | |
| Daya motor utama | 11 | kw | |
| Kecepatan slide | Fast down | 180 | mm |
| Work | 10 | mm | |
| Kembali | 160 | mm | |
| Back gauge X axis | Stroke | 600 | mm |
| Max speed | 350 | mm/s | |
| Re-position accuracy | ≤0.05 | mm | |
| Back gauge R axis | Stroke | 200 | mm |
| Max speed | 200 | mm/s | |
| Re-position accuracy | ≤0.05 | mm | |
| Machine Dimensions | Panjang | 3800 | mm |
| Lebar | 1850 | mm | |
| Tinggi | 2750 | mm | |
| Berat mesin | / | 9000 | kg |
Konfigurasi Produk

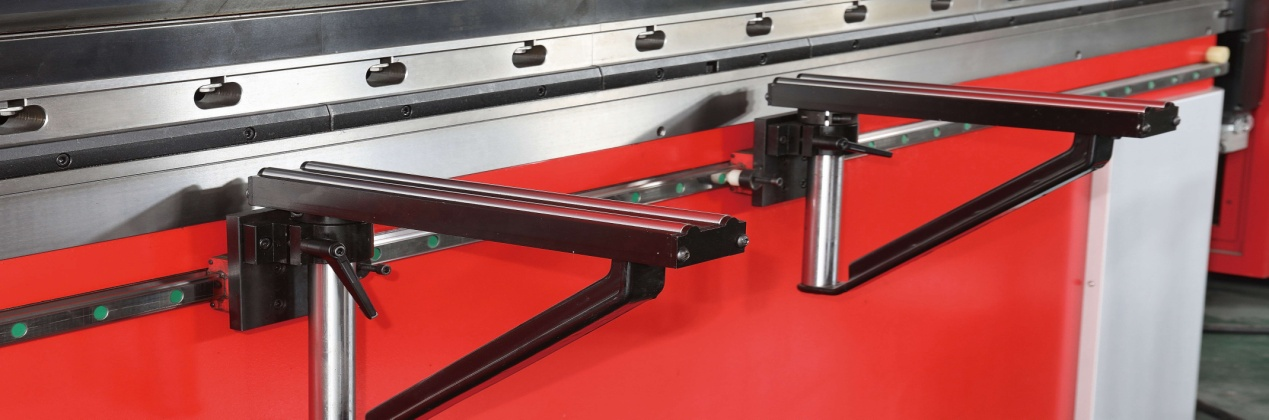

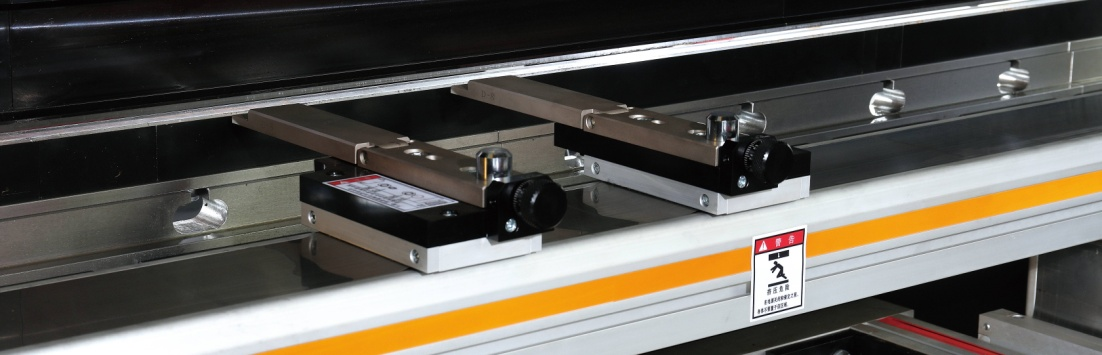

Moving front support frame: It moves along the linear guide rail and can be parked at any position to assist your bending work and make the work comfortable and efficient.

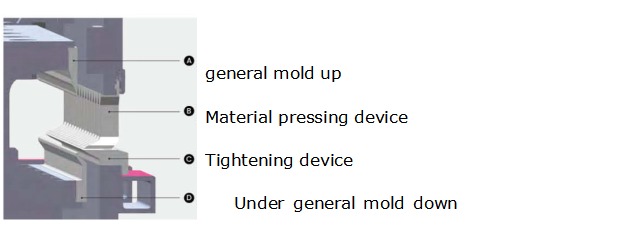

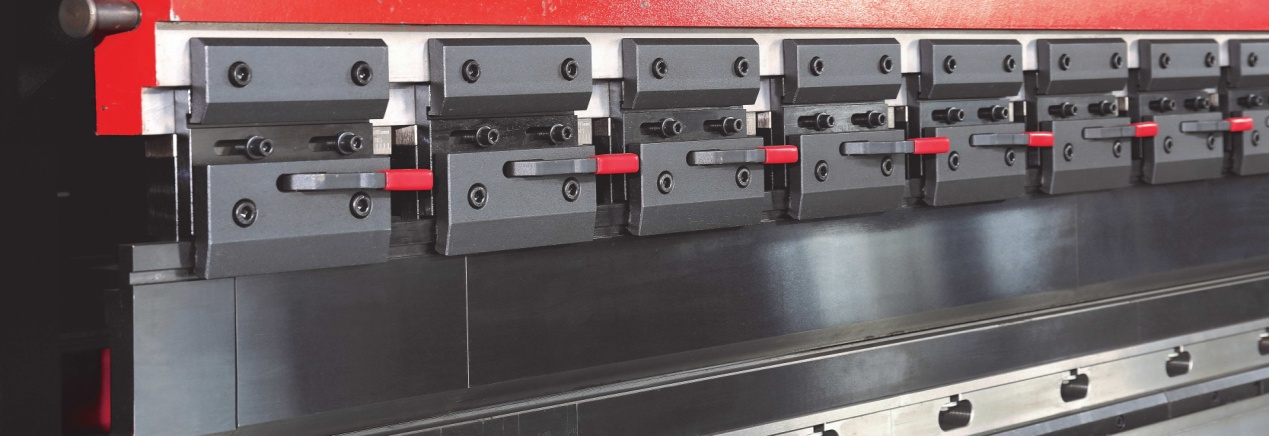

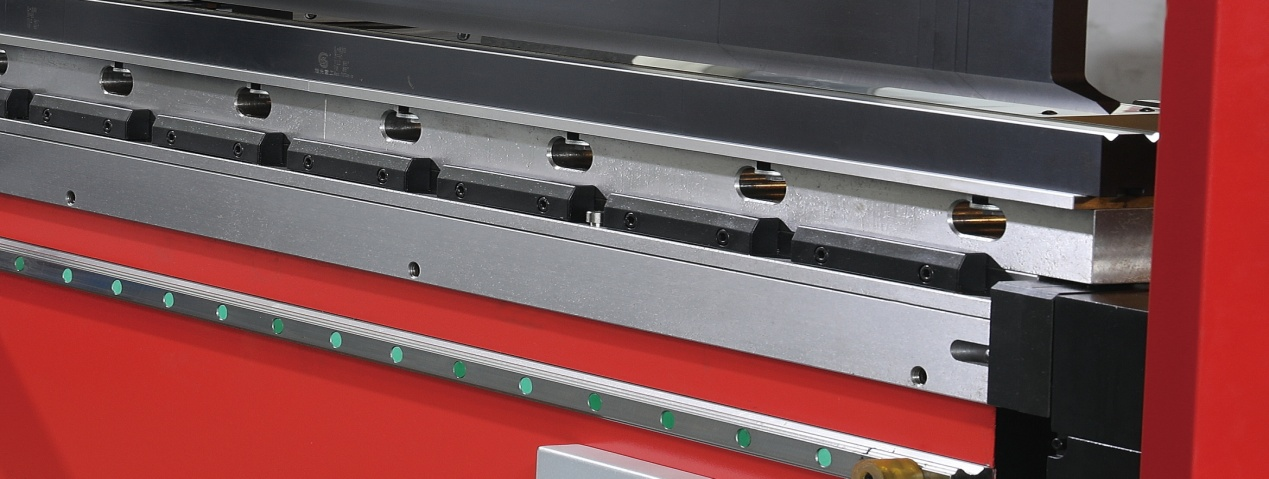

High Precision and fast clamping system: fast and easy to change the tooling, decreasing labour strength and enhance productivity.
Higher quality press brake tooling:whole hardened high precision CNC press brake tooling it is durable.
High precision and stable back gauge system(Optional): New and unique double linear guide constrction,To ensure the good positioning accuracy.Design of multistage stops, to increase the positioning range, above the price in value.

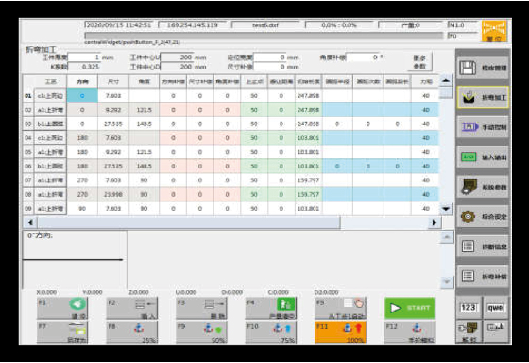

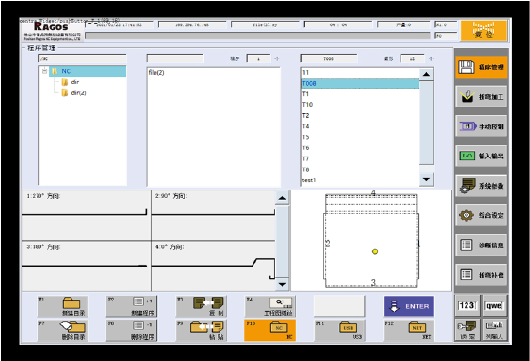

Easy to operate cnc control system can help you save time to improve working efficiency.
Cast machine body (featuring stable structure, small deformation and high precision
Machine tool technology

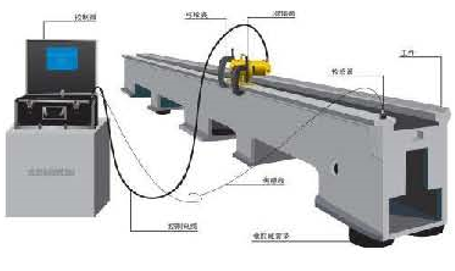

Vibration aging stress relief
Vibration aging stress relief
To eliminate the internal stress of workpiece, ensure that the machine works for a long time with high precision.
Finished machining

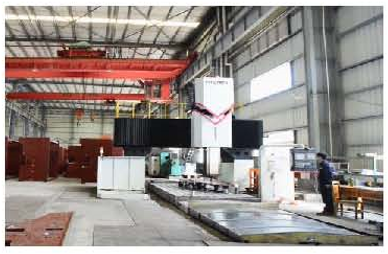

Finished machining: Owned large horizontal gantry milling machines for meeting Ragos precise machining requirements, also ensure high quality installation base.
Natural aging: Machine frames need to be placed naturally for 6 months to release stress from heat treatment, which is to get stable accuracy and higher rigidity.

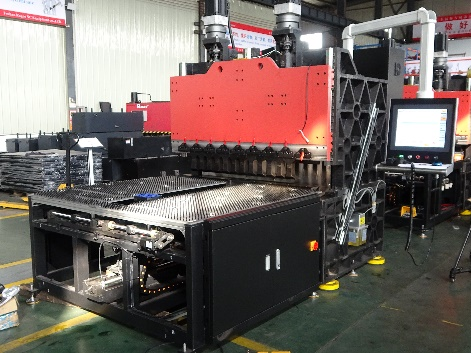

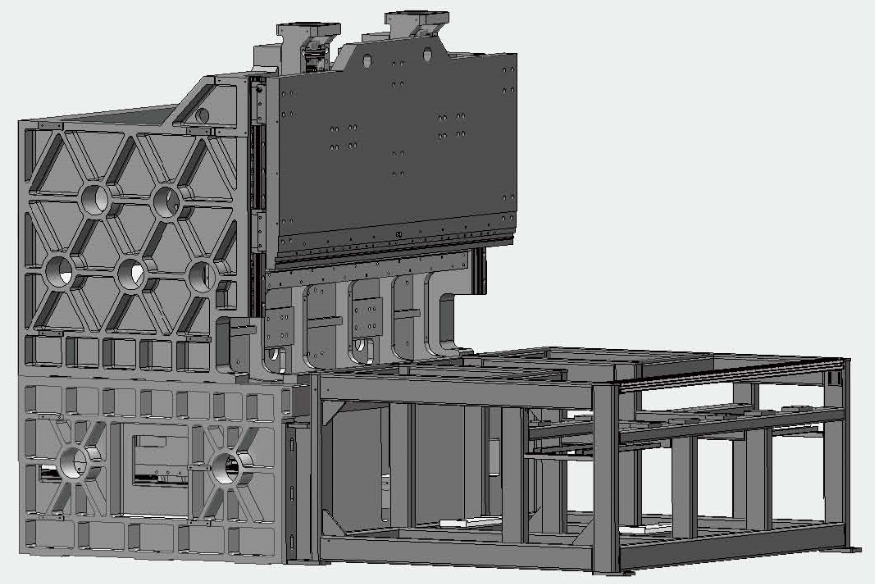

Below is the machine bedding processing

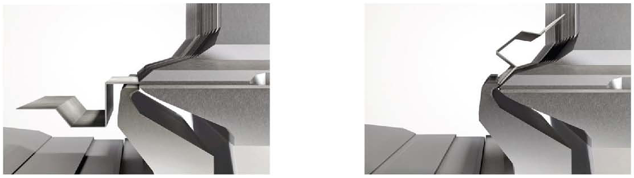

Bend Up
Bend Down

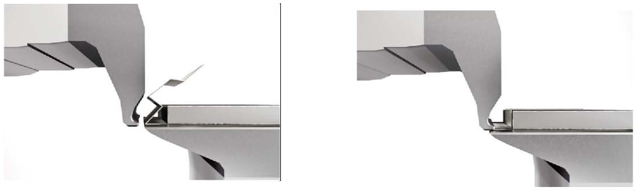

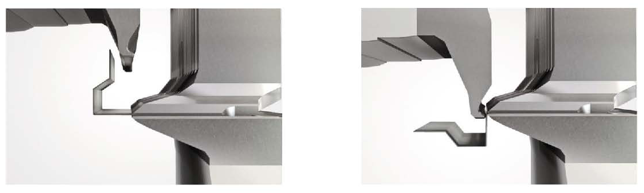

Flattening and bending

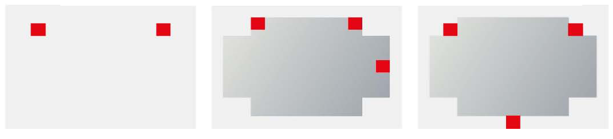

Sheet positioning system
Tail positioning Plate pre-positioning Final positioning

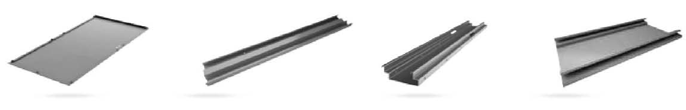

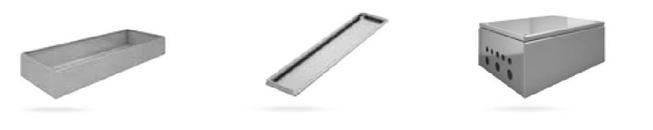

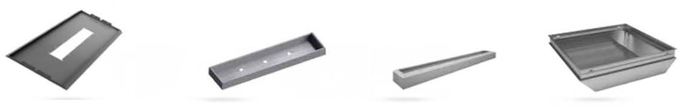

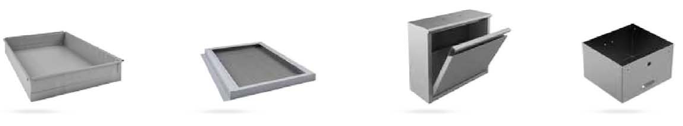

Product samples
rincian
- Slider Stroke (mm): 300 mm
- Tingkat Otomatis: Sepenuhnya Otomatis
- Kedalaman Tenggorokan (mm): 400 mm
- Tipe Mesin: Batang Torsi
- Panjang Meja Kerja (mm): 4000
- Lebar Meja Kerja (mm): 2500 mm
- Dimension: 4000*2500*3600
- Kondisi: Baru
- Bahan / Olahan Logam: Baja Tahan Karat, PADUAN, Baja karbon, Aluminium
- Berat (KG): 7000
- Motor Power (kw): 25 kw
- Poin Penjualan Utama: Tingkat Keamanan Tinggi
- Garansi: 1 Tahun
- Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Home Use, Construction works , Advertising Company
- Lokasi Showroom: Tidak Ada
- Jenis Pemasaran: Produk Baru 2020
- Laporan Uji Mesin: Disediakan
- Inspeksi keluar video: Disediakan
- Garansi komponen inti: 1 Tahun
- Core Components: Bearing, Motor, Gear, Engine
- Nama Produk: Mesin Bending Cnc Hidrolik
- Bahan Baku: Lembar
- Power: 7.5kw 10kw 15kw 20kw
- Aplikasi: Pelat Stainless Bending
- Fungsi: Pembengkokan Logam Baja
- Control system: DA69T-DA66T-DA58T-CT8-CT12
- CNC System: Delem Holland
- Sistem Hidrolik: Bosch Rexroth Jerman
- Color: White and red
- Motor Utama: Siemens Jerman
- Layanan Purna Jual yang Disediakan: Suku cadang gratis, Instalasi lapangan, commissioning dan pelatihan, Layanan pemeliharaan dan perbaikan lapangan, Dukungan teknis video
- Layanan Setelah Garansi: Dukungan teknis video, Dukungan online
